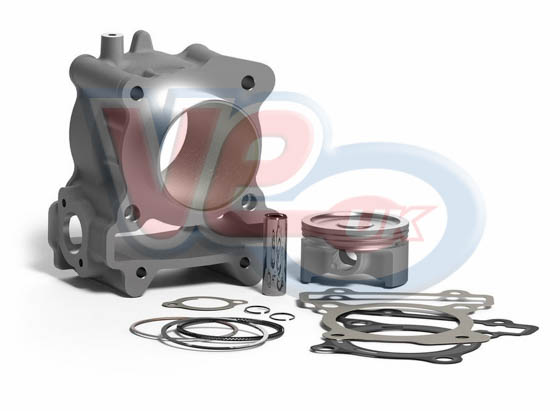

MALOSSI 183cc CYLINDER KIT – TO BE USED WITH FORCEMASTER YM559448 – N-MAX 2017-2020
£302.10 (including VAT)
The Malossi 183cc Cylinder kit YM317968 Fits the YAMAHA N-MAX 125 ie 4T LC Euro 4 2018-> (E31LE) & YZF R 125 Euro 4 2019-> TECHNICAL FEATURES Cylinder Bore : à 63 mm Stroke : 58.7 mm Displacement : 183 cc Compression ratio : 11.27 Material : primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances Machining: on machine tools with high precision numerical control Cylinder-piston connection with an allowance of 0.05 mm Recalculated and upgraded heat exchange surfaces. Piston Ultra compact with 3 rings Material : special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces Machining on machine tools with numerical control Lightened and reinforced Upgraded heat exchange surfaces Piston rings Special rings with high sliding ease and very high mechanical resistance I° ring compression in nitrided and chromium steel II° special cast iron ring Three piece scraper ring made of chromium-plated special steel alloy NOTE To be installed exclusively with Force Master control unit (N-Max Euro 4 2017> YM559448) (YZF R 125 E4 2019> 0655019751) Malossi part number 3117968.
Fitment Chart
| BETA | BETA RR 125 ENDURO Euro 5 2021> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| BETA | BETA RR 125 MOTARD Euro 5 2021> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC CABALLERO DELUXE 125 4t LC EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC CABALLERO FLAT TRACK 125 4t LC EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC CABALLERO SCRAMBLER 125 4t LC EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC ENDURO XEF COMPETITION 125 4t EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC ENDURO XEF PERFORMANCE 125 4t EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC MOTARD XMF COMPETITION 125 4t EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC MOTARD XMF COMPETITION 125 4t EURO 5+ 2025> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC MOTARD XMF PERFORMANCE 125 4t EURO 5 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| FANTIC | FANTIC MOTARD XMF PERFORMANCE 125 4t EURO 5+ 2025> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019265 |
| YAMAHA | YAMAHA 125 BWS - YW125 Euro 4 - 2019 on | MALOSSI 183cc CYLINDER KIT |
| YAMAHA | YAMAHA 125 N MAX - GPD125 Euro 3-4 - 2015-2020 | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER YM559448 - N-MAX 2017-2020 |
| YAMAHA | YAMAHA 125 N MAX - GPD125 Euro 5 - 2021 on | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER YM559527 - N-MAX 2021 on |
| YAMAHA | YAMAHA 125 TRICITY - MW125 Euro 5 2023> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER YM559527 |
| YAMAHA | YAMAHA 125 X MAX - YP125R Euro 5 - 2021 on | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER YM559527 |
| YAMAHA | YAMAHA MT 125 - Euro 5 - 2021 on | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019888 |
| YAMAHA | YAMAHA XSR125 - Euro 5 - 2022 on | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019888 |
| YAMAHA | YAMAHA YZF R 125 Euro 4 2019> | MALOSSI 183cc CYLINDER KIT - TO BE USED WITH FORCEMASTER 0655019751 YZF R 125 EURO 4 2019 ON |
