VMC EXPLORER 244cc CYLINDER KIT – VESPA 200 – SEE NOTES ABOUT FITTING REQUIREMENTS
£468.00 (including VAT)

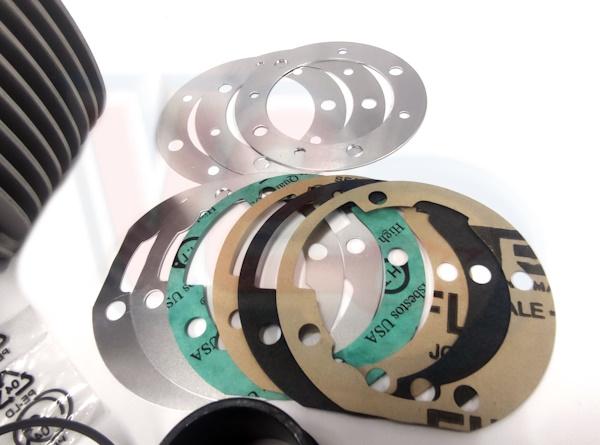

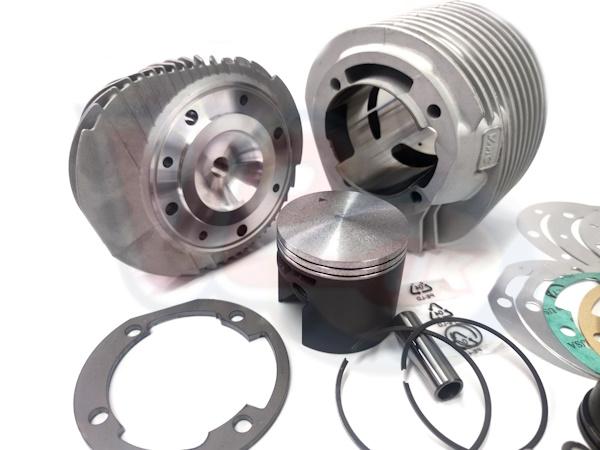

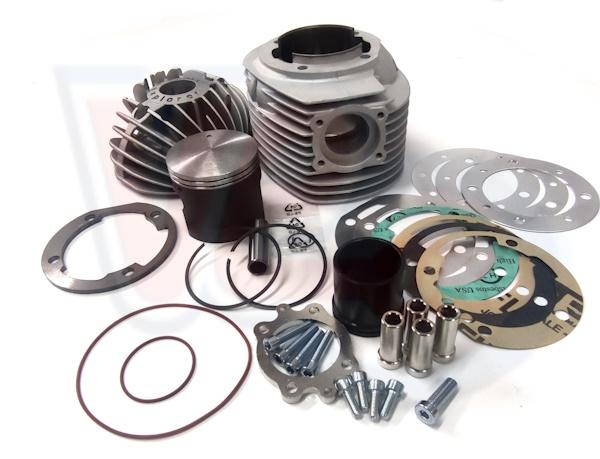

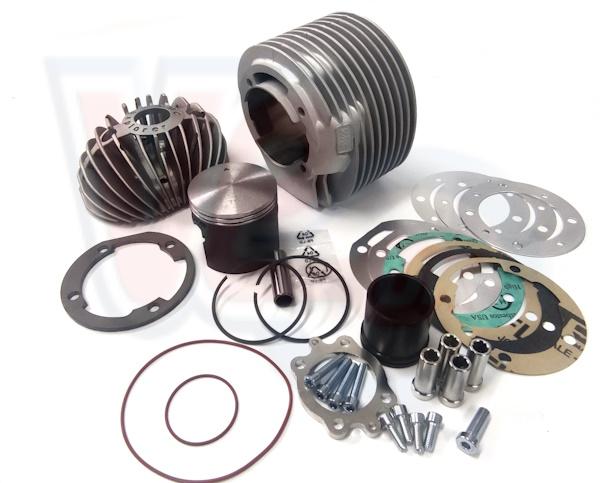

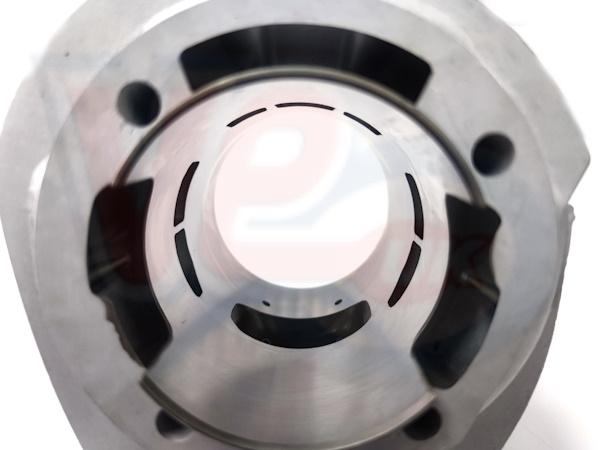

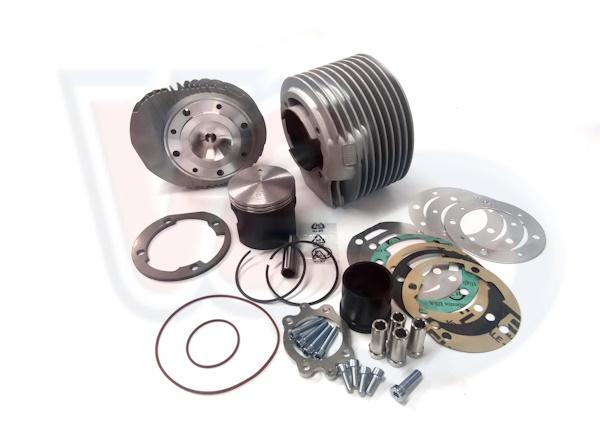

VMC00705 VMC EXPLORER 244cc (72mm BORE) CYLINDER KIT - VESPA P200. VMC EXPLORER cylinder kit 244cc 72mm with centre plug head, 7-port aluminum cylinder, shell molding technology, barrel with nickel-silicon treatment. .Bore 72mm, Stroke 60mm, Conrod 126mm (quattrini shafts) and 127mm (Sip shafts). Total displacement 244 cc, Main transfer phases:120 degree, exhaust:178 degree. Recessed head with Oring silicone gasket and 8 fixing points to the cylinder.Steel exhaust manifold with Oring silicone gasket fixed to the cylinder with a specific bracket and 4 screws. .The cylinder has a liner of about 8mm which allows the correct guide to the piston even if mounted in 62 and 64mm stroke. .The liner is of a larger outside diameter than the stock cylinders and requires the crankcase mouth to be bored to 76mm by 8mm deep. .To carry out this process manually, a steel base/guide is supplied to be screwed to the casings. .It will be enough to carry out the work with a cylindrical cutter of suitable dimensions and to respect the indications in the instructions. .High quality meteor piston with molybdenum disulphide anti-friction treatment, chromed steel rings. .Paper gaskets supplied with the cylinder kit: 0.2-0.3-0.4-0.5 mm. .Aluminum shims supplied in the kit between head and cylinder of: 0.3-0.5-1 mm. .Aluminum cylinder base thicknesses supplied in the kit from: 0.5 - 1 mm.
Fitment Chart
| VESPA | VESPA 200 - P200E 1978-1981 | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
| VESPA | VESPA 200 - PX200E 1981-1984 | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
| VESPA | VESPA 200 - PX200E DISC 1998 ON | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
| VESPA | VESPA 200 - PX200EFL 1984-1997 | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
| VESPA | VESPA 200 COSA | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
| VESPA | VESPA 200 RALLY | VMC EXPLORER 244cc CYLINDER KIT - VESPA 200 - SEE NOTES ABOUT FITTING REQUIREMENTS |
